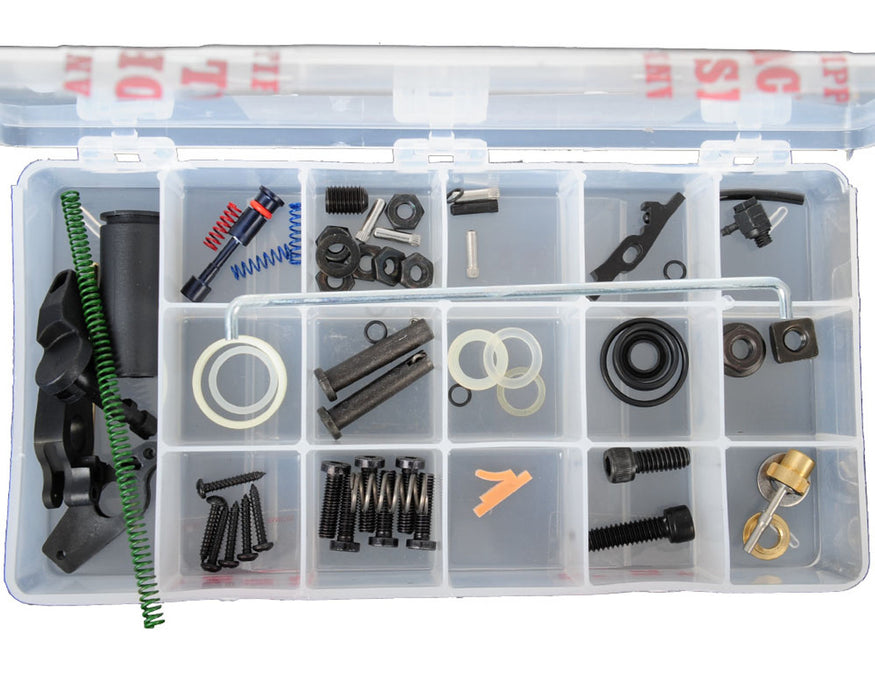

Tippmann A5 Deluxe Parts Kit (02-PK)

Tippmann A5 Spare Parts

• 02-17: A-5/98/X7 Front Bolt (1)
• SL2-4: O-Ring Buna Black 2-015 (2)
• CA-14: A-5/98/PC/X7 Drive Spring (1)
• CA-15: Pin Guide FLT HD 0.117 X 2.085 (1)
• 9-PA: Black Hex Nut #10-32x3/8 (6)
• PL-42D: Square Nut Black 1/4 -20 (1)
• CA-40: Screw SHCS ¼-20 X 5/8 (1)
• 98-45: Washer TPHS 8-32 X .25 (1)
• 02-22: Screw SHSS 5/16-24 X 7/16 (1)
• 02-37: A-5 Safety (1)
• 02-41: Screw SHCS ¼-20 X 7/8 (1)
• 02-20: Sear Spring Blue (2)
• 20-07: Banjo Fitting (1)
• 02-63: O-Ring Piston Buna U-Cup (1)
• 20-18: Hose Black Polyurethane 5/64 X 1 (1)
• 02-20S: Trigger Spring Red (1)
• FA-18: Ball Latch – Orange (1)
• PL-42A: Screw Grip 4 X 5/8 (6)
• 02-71: Washer Flat 9/32 (1)
• 02-72: Valve O-Ring 2-111-70A (1)
• 02-33: Pin Dowel Knurl 1/8 x ½ (4)
• 98-01A: Bolt LHSHCS 10-32 X .625 (6)
• 02-40: A-5 O-Ring Barrel Buna 13/16 X 15/16 X 1/16 (1)
• 18-PA: O-Ring Tank Valve Trans Urethane 9/16 X 11/16 X 1/16 (1)
• 02-PIN: A-5 Push Pin (2)
• TA01016: A-5/X7/98 Linkage Arm (1)
• 98-12A: O-Ring Cast Urethane 2-019, 90A (2)
• 02-33A: Pin Dowel Knurl Black DP 1/8D X 1/2L (2)
• TP03023: 4X4 Label – Tippmann Accessory (1)
• 02-35: A-5/98 Sear
• 02-42 Flange ¼ - 20 (1)
• 02-53: Feeder Ratchet (2)
• 02-86A: O-Ring Banjo Fitting (4)
• 98-PL: Valve Plunger (1)
• CA-27: Valve Seat (1)
• PA-32: A-5/X7 Valve Spring (1)
• SL2-25: O-Ring Cast Urethane 2-012 (1)
• 98-03C: GN Box Seal Sticker (2)
• TA01022: A-5 H.E. E-Grip Safety (1)
• TA01058L 2010 A-5 Valve Seal (1)

Complete factory parts kit to rebuild your Tippmann A-5.
